18″ Narrow Web

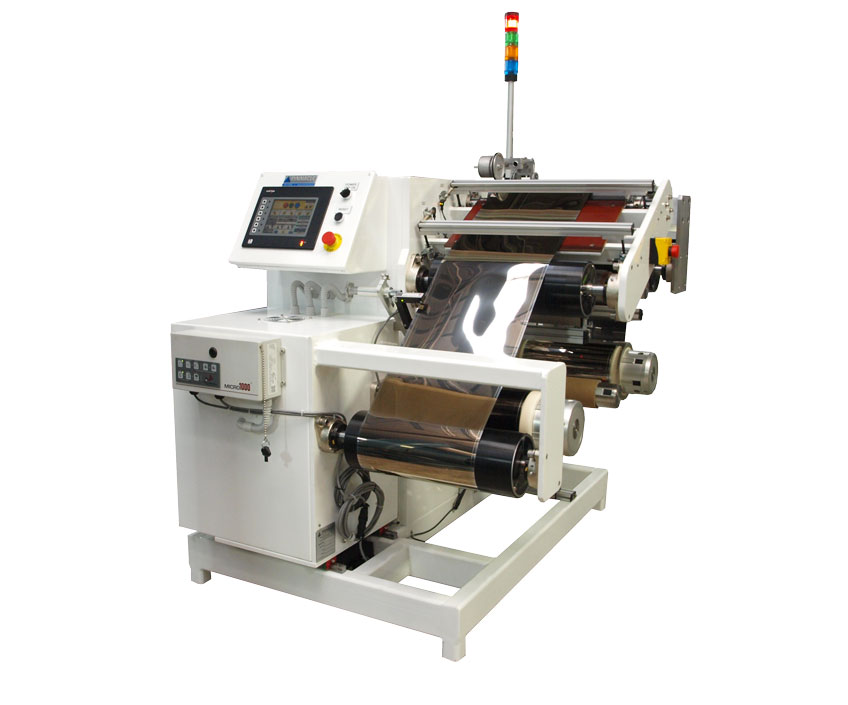

This Custom Film Rewinding Doctoring Module is designed to rewind longer rolls of ferritic stainless steel to specified lengths and to align the edges with precision. The machine shown includes a splice station and an option to remove an interleaf layer of material wound inside the master roll of material.

Converting Type

Rewinding Equipment, Doctor Machine

Winding Type

Simplex

Material: Metallic films and foils with or without protective interleaf

Unwind:

  • Roll Width: 457mm/18″
  • Roll Diameter: 381mm/15″ maximum
  • Roll Weight: 100kg max./200lb. max
  • Core ID: 152mm/6.0″ ID

Rewind:

  • Roll Width: 457mm/18″
  • Roll Diameter: 381mm/15″ maximum
  • Roll Wt. 100kg max./200lb. max
  • Core ID: 152mm/6.0″ ID

Safety:

  • Fully guarded ( fixed ) and secured.
  • E-Stops

General:

  • Welded integral steel frame construction.
  • Controls: 15″ Touchscreen
  • Floor mounted
  • One side non-contact web path
  • All electrical components are UL 508A and NPFA 70 complaint.
  • White powder coated frame, plated bearings for cleanroom environment.

Unwind:

  • Cantilevered shaft
  • Splice station
  • Magnetic particle brake
  • Automatic unwind tension control via load cell
  • +/- 1.0” correction automatic edge-guiding system

Rewind:

  • Programmable length counter
  • Cantilevered rewind shaft with end support
  • Static control system
